Developer-provided extensions influence how the config system behaves.

The config system introduction explains the design of the config system and how its parts work together to read and parse config data, convert it to Java types, fine-tune the look-up of config data, and reload and reprocess data when it changes. _Config extensions provided by the application modify and expand the way the config system performs these steps.

Each config extension implements one of the interfaces defined in the Configuration SPI:

• ConfigSource - Loads raw configuration data from a given type of source and delegates to a ConfigParser, producing the in-memory data structure which represents the loaded and parsed configuration.

• ConfigParser - Translates configuration content in a given format into the corresponding internal config data structures.

• OverrideSource - Provides key/value pairs which override config values loaded from any ConfigSource, given the key and ignoring the original value.

• ConfigFilter - Transforms config String values returned from any value-type Config node, given the key and the original value.

• ConfigMapperProvider - Provides one or more ConfigMappers each of which converts a Config object tree to a Java type specific to the application.

• PollingStrategy - Implements a custom technique to trigger polling of underlying sources for changes

• ChangeWatcher - Implements a custom technique to watch underlying sources for changes and notifying the config system of such a change

The extension mechanism of Config can also use Java ServiceLoader. For this purpose, you implement providers that serve as factories for your implementation of an extension. This is to support config profiles even for custom extensions. Service providers:

• ConfigMapperProvider - support for config mappers, automatically discovered by the config system

• ConfigFilter - support for config filters, automatically discovered by the config system

• ConfigParser - support for config parsers, automatically discovered by the config system

• ConfigSourceProvider - support for named config sources, configurable through profiles

• ChangeWatcherProvider - support for named change watchers, configurable through profiles

• OverrideSourceProvider - support for named override sources, configurable through profiles

• PollingStrategyProvider - support for named polling strategies, configurable through profiles

• RetryPolicyProvider - support for retry policies, configurable through profiles

The config system itself implements several of these SPIs, as noted in the sections below.

You can configure a custom extension in two ways:

1. Manual configuration with builder
2. Automatic configuration using a Java service loader

Manual Configuration with Builder

Config config = Config.builder()
                .addSource(FileConfigSource.builder()
                                   .changeWatcher(MyChangeWatcher.create())
                                   .pollingStrategy(MyPollingStrategy.create())
                                   .parser(MyConfigParser.create())
                                   .retryPolicy(MyRetryPolicy.create()))
                .addSource(MySource.create())
                .addFilter(MyFilter.create())
                .overrides(MyOverrides.create())
                .build()

Automatic Configuration Using a Service Loader

boolean supports(String type);
ConfigSource create(String type, Config metaConfig);

sources:
  - type: "my-type"
    properties:
      my-config: "configuration"

About Priority

The config system includes built-in support for several types of sources (for example, Java String, Readable, Properties, and Map objects - see ConfigSources). Implement a ConfigSource to load raw configuration data from a type of source that the config system does not already support.

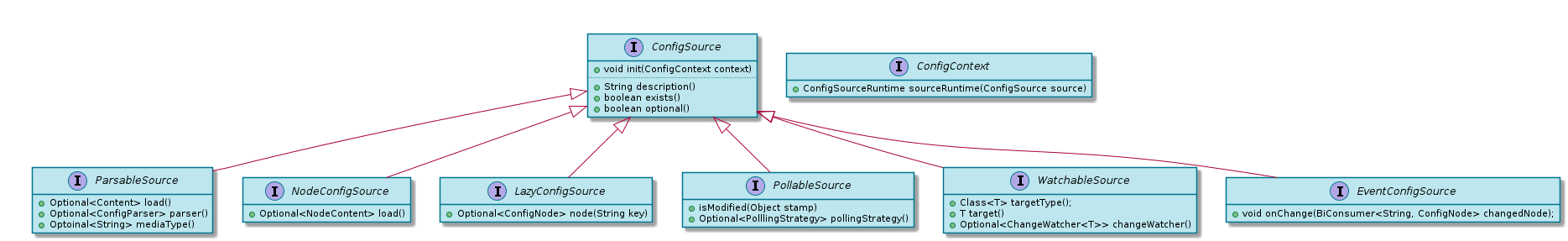

For config sources that work directly with config nodes, the following API is available. These interfaces have an implementation provided by Helidon. The interfaces ConfigNode, ObjectNode, ValueNode and ListNode represent the in-memory data structure for loaded and parsed configuration data.

For config sources that work return data (NodeConfigSource and ParsableConfigSource) a Content must be returned that describes the loaded data. The following diagram depicts the Content API.

Some methods provided are not always mandatory, yet they are part of the APIs to simplify the overall class structure:

• ConfigContent.stamp() - this method is used by PollingStrategy to determine if content has been changed. This can be always empty for sources, that do not implement PollableSource

• ConfigParser.Content.charset() - this can return any Charset for media types that are binary

• ConfigParser.Content.mediaType() - this can be used to override media type (that would otherwise be "guessed" from the underlying source)

• ParsableSource.parser() - this can be used to override parser (that would otherwise be based on mediaType)

• ParsableSource.mediaType() - return the configured or "guessed" media type of this source, see io.helidon.common.media.type.MediaTypes, if not returned, media type must be present on Content, or provided through media type mapping

The parsing step converts config data in some format into the corresponding in-memory representation of config ObjectNodes. The config system can already parse several data formats (for example Java Properties, YAML, and HOCON). Implement the ConfigParser SPI to allow the config system to handle additional formats.

The ConfigParser.Content interface defines operations on the content that is to be parsed by a ConfigParser implementation:

• mediaType() - Reports the media type of the content (if it is to override media type defined on the config source)

• data() - Provides the InputStream with config source data

• charset() - Defines the charset to use to parse the stream in case this is a text based media type, ignored by parsers of binary content

The application can register parsers for a builder by invoking Config.Builder#addParser(ConfigParser). The config system also uses the Java service loader mechanism to load automatically, for all builders, any parsers listed in the META-INF/services/io.helidon.config.spi.ConfigParser resource on the runtime classpath. Prevent autoloading of parsers for a given builder by invoking Config.Builder#disableParserServices().

ConfigParser accepts @Priority. See About Priority.

my.module.MyConfigParser

module my.module {
    requires transitive io.helidon.config;
    provides io.helidon.config.spi.ConfigParser with myModule.MyConfigParser;
}

When the application retrieves a configuration value the config system first uses the relevant config sources and filters. It then applies any overrides the application has provided. Each override has:

• a Predicate<Config.Key> (a boolean-valued function that operates on the config key), and

• a replacement, overriding, String value the config system should use if the predicate evaluates to true.

To furnish overrides to the config system, implement the OverrideSource SPI one or more times and pass instances of those implementations to the config builder’s overrides method. The config system will apply the overrides returned from each OverrideSource to each config key requested from a Config that is based on that Config.Builder.

To support custom override sources in config profiles, also implement the OverrideSourceProvider service loader SPI

Note that override sources can also implement PollableSource, and WatchableSource to add change support.

Before returning a String from Config.value() the config system applies any filters set up on the Config.Builder used to create the config tree that contains the config node of interest. The application provides filters as implementations of the ConfigFilter interface. Each filter is a function which accepts a Config.Key and an input String value and returns a String value the config system should use for that key going forward. The filter can return the original value or return some other value.

The application registers filters and filter providers by passing ConfigFilter implementations to one of the config builder addFilter methods. The config system also uses the Java service loader mechanism to load additional filters automatically, for all builders, using the service interface described in the following table. Prevent a given builder from using the autoloaded filters by invoking the disableFilterServices method.

Initializing Filters

The ConfigFilter JavaDoc describes multiple methods for adding filters to a Config.Builder. Some accept a ConfigFilter directly and some accept a provider function which, when passed a Config instance, returns a ConfigFilter.

Neither a ConfigFilter nor a provider function which furnishes one should access the Config instance passed to the provider function.

Instead, implement the ConfigFilter.init(Config) method on the filter. The config system invokes the filters' init methods according to the filters' @Priority order.

Recall that whenever any code invokes Config.get, the Config instance invokes the apply method of all registered filters. By the time the application retrieves config this way the config system will have run the init method on all the filters. But note that when a filter’s init method invokes Config.get, the init methods of lower-priority filters will not yet have run.

ConfigFilter SPI

The config system provides built-in mappings from String values to various Java types. (See ConfigMappers.)

To handle mappings to other types the application can register custom mappers with the config system by implementing the ConfigMapperProvider SPI.

Such providers return a map, with entries in which:

• the key is the Java type (a Class object) the mapper produces, and

• the value is a ConfigMapper that converts the config in-memory data structure into the type in the key.

The provider may also implement other methods for finer tuned conversion mechanisms:

• genericTypeMappers() returns a map with entries for specific GenericType conversions, for example when the provider supports only mapping for GenericType<Map<String, Integer>>

• mapper(Class) returns a conversion function (optional) that converts a config node to the typed instance (if supported by this provider)

• mapper(GenericType) returns a conversion function (optional) that coverts a config node to the GenericType (if supported by this provider) - for example in case this provider supports any Map<String, ?> type, such as Map<String, Integer> and Map<String, Double>

The config conversion system works as follows:

For Config.as(Class):

1. Check whether a conversion function exists for the class requested (from method mappers()).
2. Check whether a conversion function is provided by any ConfigMapperProvider with method mapper(Class).
3. Check whether a conversion function exists for a generic type for the class requested (from method genericTypeMappers).
4. Check whether a conversion function is provided by any ConfigMapperProvider with method mapper(GenericType) for a generic type for the class requested.

For Config.as(GenericType) - the first two steps are skipped.

The config system also uses the Java ServiceLoader mechanism to load automatically, for all builders, any mappers returned by the providers listed in the META-INF/services/io.helidon.config.spi.ConfigMapperProvider resource on the runtime classpath. The application can prevent autoloading of mappers for a given builder by invoking Config.Builder#disableMapperServices(). Note that the built-in mappers described in ConfigMappers still operate.

Mapper providers accept @Priority. See About Priority.

A mapper provider can specify a @jakarta.annotation.Priority. If no priority is explicitly assigned, the value of 100 is assumed.

my.module.MyConfigMapperProvider

module my.module {
    requires transitive io.helidon.config;
    provides io.helidon.config.spi.ConfigMapperProvider with my.module.MyConfigMapperProvider;
}

Once it loads a Config tree from ConfigSource, the config system does not itself change the in-memory Config tree. Even so, the underlying data available via the tree’s ConfigSources can change. Implementations of PollingStrategy may trigger regular check whether a source has new data. Implementation of ChangeWatcher may watch the underlying source for changes and trigger an update.

PollingStrategy SPI

An implementation of PollingStrategy gets an instance to poll, and triggers its poll method. The result of poll method may be used to update the polling strategy schedule.

The approach of checking for changes is part of the config system, and the PollingStrategy does not need to be concerned with it. This is based on the source stamp as defined in ConfigContent and used in PollableSource.isModified(Object) methods.

If a more sophisticated solution is needed, you may need to implement a ChangeWatcher instead.

The config system offers polling strategy for periodic time-based checks. Often an application can create a config source simply by using one of the methods on ConfigSources (for example, ConfigSources#file(path) to get a builder and then invoke pollingStrategy passing a polling strategy. But the application can implement its own PollingStrategy and set it on the config source builder instead.

PollingStrategy SPI

To support polling strategies that can be configured in config profile, also implement the PollingStrategyProvider Java service loader SPI.

ChangeWatcher SPI

An implementation of ChangeWatcher gets the underlying source information and a change listener. The "watcher" then watches for changes of the source and notifies the listener when a change occurs.

This is designed to support sources that can react on changes (such as file system). When a polling mechanism is needed, please check PollingStrategy above.

The config system offers a change watcher for any Path based config source (such as FileConfigSource) and for the etcd config source.

To use a change watcher, simply create a config source using its builder and register the change watcher on the builder (the config source must support appropriate type of change watchers).

ChangeWatcher SPI

To support change watchers that can be configured in config profile, also implement the ChangeWatcherProvider Java service loader SPI.

The builder for each ConfigSource and OverrideSource accepts a RetryPolicy governing if and how the source should deal with failures loading the underlying data.

A retry policy accepts a function, the invocation of which the policy will govern according to its own implementation. Applications can use the predefined policies in RetryPolicies, such as RetryPolicies.justCall which simply invokes the function without any retry. That class also exposes a builder for constructing a time-based retry policy, with several parameters:

The actual delay between function call starts as delay and changes by the factor delayFactor on each successive attempt.

Note that the job of each retry policy is to call the provided function successfully. As such, the policy must perform the first attempt as well as any retries.

The application can try to cancel the overall execution of a RetryPolicy by invoking the RetryPolicy#cancel(boolean mayInterruptIfRunning) method. Ideally the retry policy implementation should be able to abort the execution of the retry policy, even while a function call is in progress, but the policy must respond to cancel between function calls. In either case cancel returns true if the retry was aborted without a successful call to the function, and false otherwise, including if the function call had already completed successfully or had previously been successfully canceled.

To support retry policies in config profiles, also implement the Java service loader SPI RetryPolicyProvider.
