Zipkin Tracing

Zipkin Tracing

Helidon is integrated with the Zipkin tracer.

The Zipkin builder is loaded through ServiceLoader and configured. You could also use the Zipkin builder directly, though this would create a source-code dependency on the Zipkin tracer.

Prerequisites

To use Zipkin as a tracer, add the following dependency to your project:

<dependency>
    <groupId>io.helidon.tracing</groupId>
    <artifactId>helidon-tracing-zipkin</artifactId>
</dependency>

Copied

Configuring Zipkin

The Zipkin tracer supports the following configuration options:

Key	Default value	Builder method	Description
service	N/A	serviceName	Name of the service, to distinguish traces crossing service boundaries; Zipkin is using lower-case only, name will be automatically lower-cased
protocol	http	collectorProtocol	Protocol of the Zipkin trace collector (http or https)
host	localhost	collectorHost	Host of the Zipkin trace collector (IP Address, hostname, or FQDN)
port	9411	collectorPort	Port of the Zipkin trace collector
path	defined by version	collectorPath	Path of the Zipkin trace collector, each version uses a different path by default.
api-version	2	version	Zipkin specific method, set the protocol version to communicate with trace collector
enabled	true	enabled	If set to false, tracing would be disabled
tags	N/A	addTracerTag(String, String)	`String` tags to add to each span
boolean-tags	N/A	addTracerTag(String, boolean)	`boolean` tags to add to each span
int-tags	N/A	addTracerTag(String, int)	`int` tags to add to each span

The following is an example of a Zipkin configuration, specified in the YAML format.

tracing:
  zipkin:
    service: "helidon-service"
    protocol: "https"
    host: "192.168.1.1"
    port: 9987
    api-version: 1
    # this is the default path for API version 2
    path: "/api/v2/spans"
    tags:
      tag1: "tag1-value"
      tag2: "tag2-value"
    boolean-tags:
      tag3: true
      tag4: false
    int-tags:
      tag5: 145
      tag6: 741

Copied

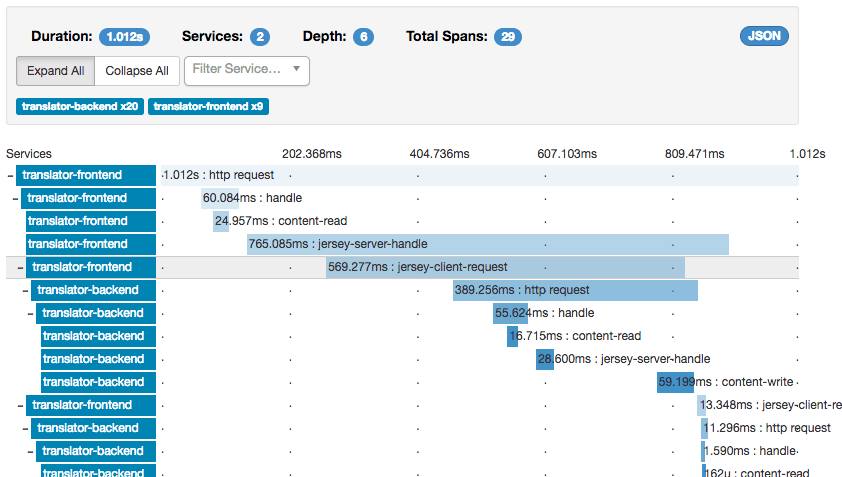

Example of Zipkin trace:
